Description

Cast Pump parts factory in China

Baoding Guokun can manufacture a multitude of pump casting parts, for example, pump housing, pump casing, cast pump body, pump mounting bracket, casting pump impeller, volute casing, pump casing cover, back liner, pump volute, pump bearing bracket, pump vane and all other customized pump cast pump components for the centrifugal pumps, vertical centrifugal pump, horizontal centrifugal pump, fire hydrant pump, gear pump, lobe pump, piston pump vacuum pump and water pump. Depending on your pump types and requirements, Baoding Guokun can cast and machine different pump replacement parts in heat-resistant stainless steel, ductile iron, gray iron, aluminum alloys and other metals.

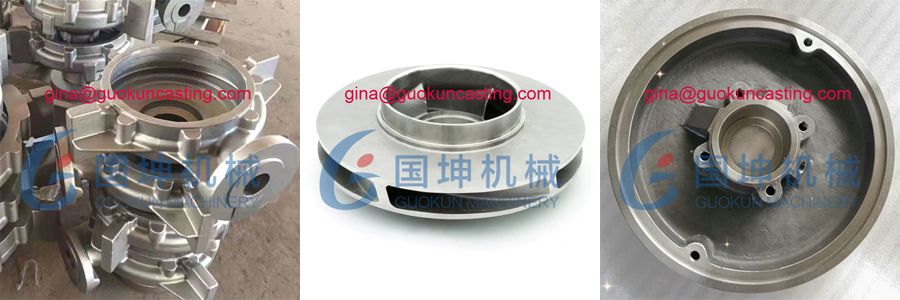

China investment casting stainless steel pump spares factory

What’s the pump casing?

The pump casing is a metal casting outer housing, pump volute or pump shell that holds a pump and protects the internal pump parts, allowing fluid to flow through while maintaining pressure and preventing leaks by sealing off the inside of the pump from the atmosphere.

The two main types of casings in centrifugal pumps are volute casings and diffuser casings. A very common classification of pump casings is the diffuser construction. A diffuser is actually a series of vanes surrounding the impeller which accepts the discharge of liquid from the impeller.

China OEM pump castings investment casting company

Metal process for pump castings:

Investment casting cast steel pump parts: Silica sol investment casting process is a very efficient and accurate casting technique that offers high precision, net-shape pump castings, smooth casting surface, reduced machining process for your stainless steel pump casting parts in UNS S31600, 316, 304, 316L, CF8, CF8M and other stainless steels.

Baoding Guokun, with 25 years casting experience, can produce various stainless steel investment casting for various industries. Lost wax investment casting process can produce complex parts that are near-net shape. The stainless steel lost-wax casting parts manufactured by Baoding Guokun is with complex shapes, tight and accurate tolerances that have a standard of +/-0.005, fine surface finish 125 μin (3.2 μm Ra), minimal machining to reduce time and cost and cost-effective.

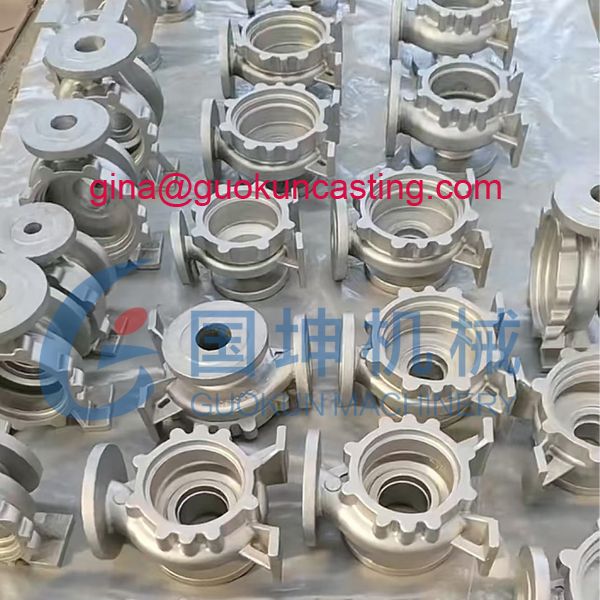

Stainless steel pump casing:

Stainless steel is a type of low-carbon steel that is resistant to corrosion and rusting. It is made from iron, chromium, and other elements, such as nickel, carbon, molybdenum, and nitrogen. The chromium content in stainless steel is at least 10.5%, which creates a chromium oxide layer on the surface that protects the material from further oxidation.

Stainless steel has many properties, including corrosion resistance, durability, temperature resistance, recyclability, maintenance, modern appearance, high tensile strength, good ductility and high hardness. The stainless steel can be used in many different industries, such as automotive, aircraft, construction, marine, medical, food, etc.

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
