- Ensure proper forging and heat treatment to avoid defects like cracks or uneven hardness.
- Perform non-destructive testing (e.g., ultrasonic or magnetic particle inspection) to ensure quality.
- Optimize gear design for load distribution and efficiency.
42CrMo4 forged gears can deliver reliable performance in gear motor applications.
Please mail your inquiry to gina@guokuncasting.com to get the quotation.
Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings and forgings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.
With a monthly capacity of 10,000kgs and with more than 25 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

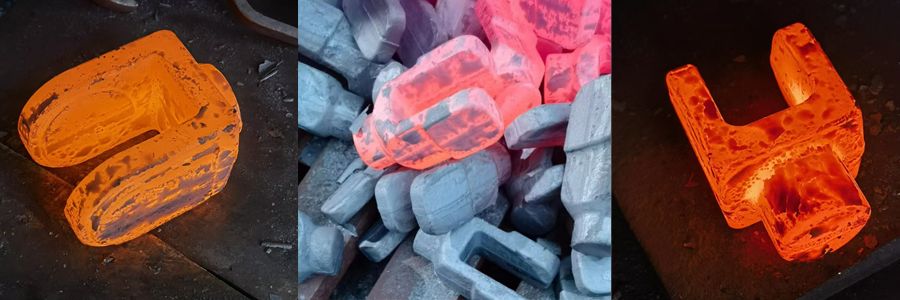

Drop forging is a highly valued metal forging process that uses a pair of impression dies and a heavy hammer to form and compress metal bars or billets into complex shapes. The steel forged clevis end yoke are with high density, good mechanical properties and wear resistance, compared with casting rod end yoke.
Baoding Guokun’s drop forging process
| Close die forging or mold forging process | |
| Material Selection | Choose the appropriate metal (e.g., carbon steel, alloy steel, aluminum, or titanium) based on the component’s requirements. Ensure the required steel meets the required chemical composition and quality standards. Baoding Guokun will test the material’s chemical composition before storage. |
| Billet Preparation | Cut the raw material into billets of the required size. And heat the billet to the forging temperature (typically 1100°C–1200°C for steel) to make it malleable |
| Die design and preparation | Design the dies (upper and lower) to match the final shape of the component. Dies are typically made from high-strength tool steel and are precision-machined. |
| Forging | Place the heated billet into the lower die. Apply pressure using a hydraulic or mechanical press to force the metal into the die cavity. The metal fills the die, taking the shape of the mold |
| Flash Formation & Trimming | Excess metal, called flash, flows out of the die cavity through small gaps. Remove the flash and excess material using trimming dies or machining |
| Cooling | Allow the forged part to cool slowly (for some materials) or control the cooling rate to achieve desired properties. |
| Heat Treatment | Perform heat treatment processes like normalizing, quenching, and tempering to enhance mechanical properties (e.g., hardness, toughness) |
| Finishing | Machine the forged part to achieve precise dimensions and surface finish. Apply surface treatments (e.g., sand blasting, coating) if required |
42CrMo4 is a high-quality alloy steel known for its high strength, toughness, and wear resistance, making it an excellent material for forging gears, especially in demanding applications like gear motors. Here’s an overview of its properties and the forging process for gears:
Properties of 42CrMo4
Baoding Guokun is a 25 years’ experience casting factory and forging factory in sand molding process and investment casting process and mold forging process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing, motor housing end cap, motor end cover, motor housing hub end cover, motor end bracket, electric mold frame, motor end bell, motor base, motor fan cover, cooling fan, cast iron frame, end bracket, bearing housing, rear end shield, front end shield and other custom motor casting in cast iron, cast steel and aluminum alloys.

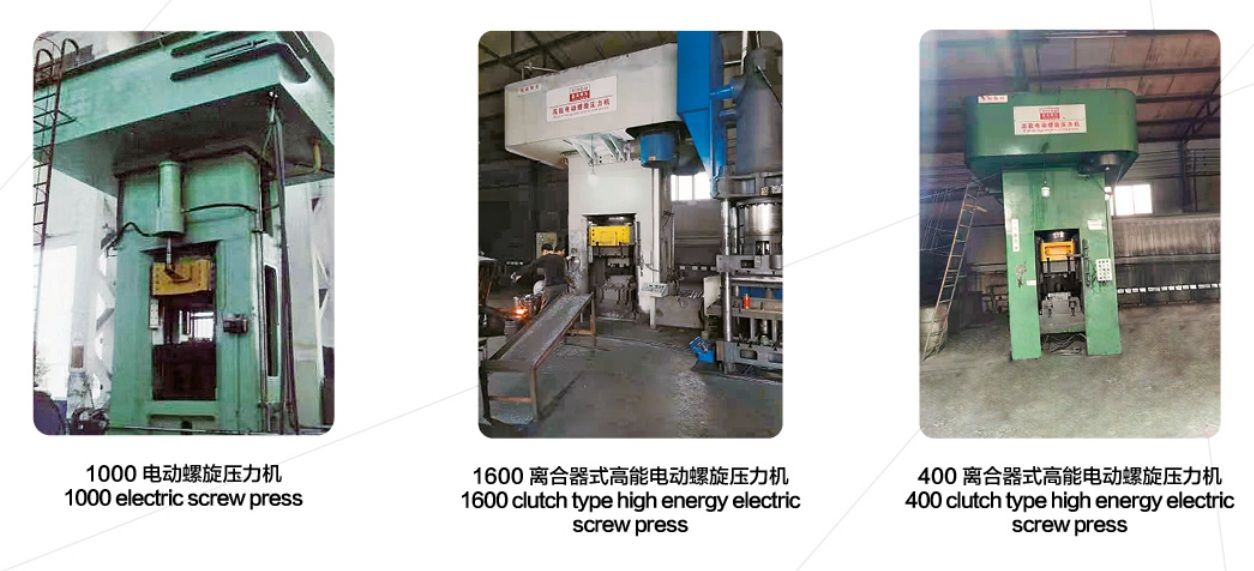

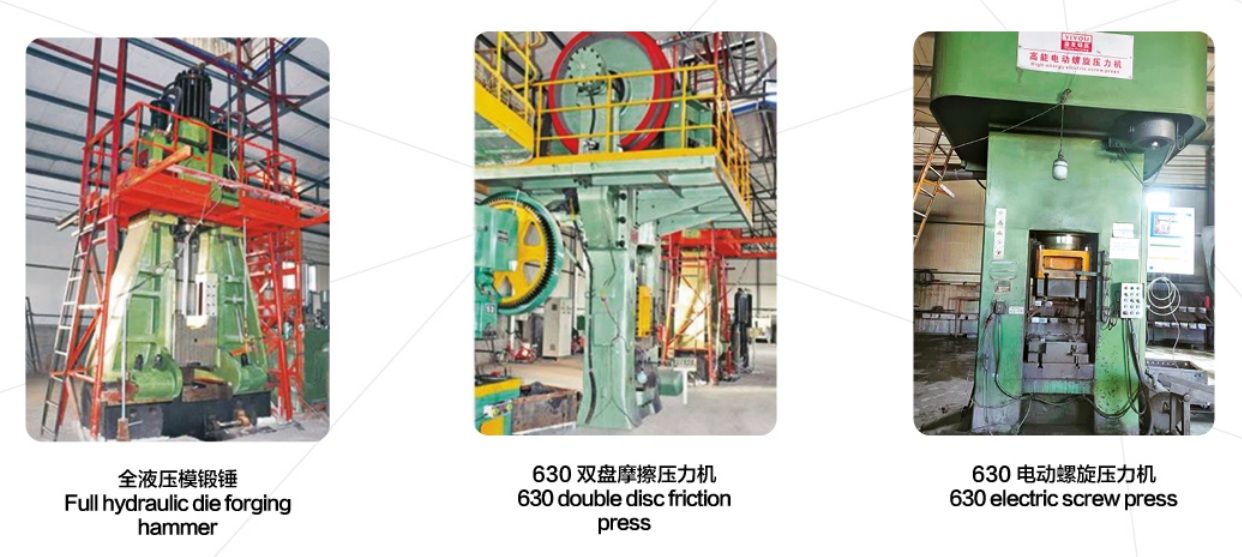

Baoding Guokun mold forging equipment
Baoding Guokun mold foirging equipment
Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, power generation investment casting, Medical casting, marine industry casting
