Aluminum Speed Reducer Housing

Home Aluminum Castings Aluminum Speed Reducer Housing

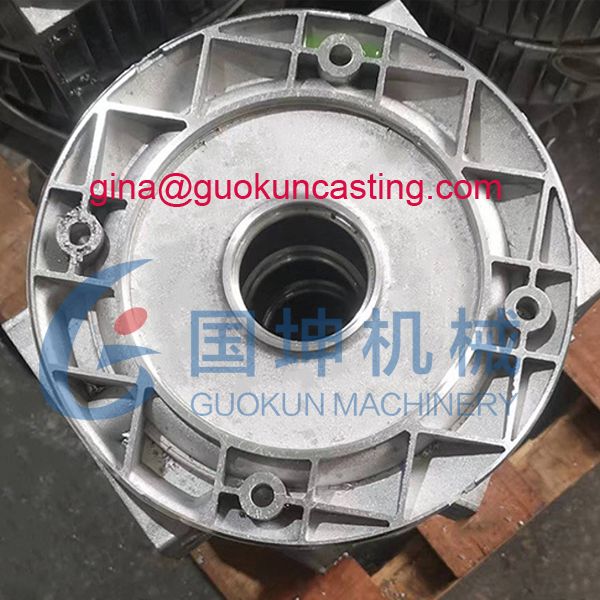

Aluminum Speed Reducer Housing

Part Name: Speed reducer aluinum housing

Material: Aluminum alloy ADC12/ EN AC46100

Metal casting process: Die casting

Casting tolerance: ISO 8062 CT5

Machining tolerance: ISO 2768 mK

Surface finish: Shot blasting

Compared with cast iron reducer shell, die casting aluminum speed reducer housing has good thermal conductivity, good plasticity, better heat dissipation performance, higher elongation rate and light weight. If you need aluminum die cast gear reducer casing, please contact gina@guokuncasting.com to get a quotation.

Aluminum Castings Tags: ,

Description

Baoding Guokun is a China metal casting factory and exporter that is concerned with the design, development and production of speed reducer parts or gear reducer components, such as output flange, housing,  cover as per customer’s drawings or requirements. Speed reducers, also gear reducers, are mechanical devices that mainly serve two purposes: to increase the amount of torque produced by an input power source for a greater amount of usable work and reduce the speed of the input power source for the desired output speeds. Reduction gear comprises of a set of rotating gears that are connected to a wheel work.

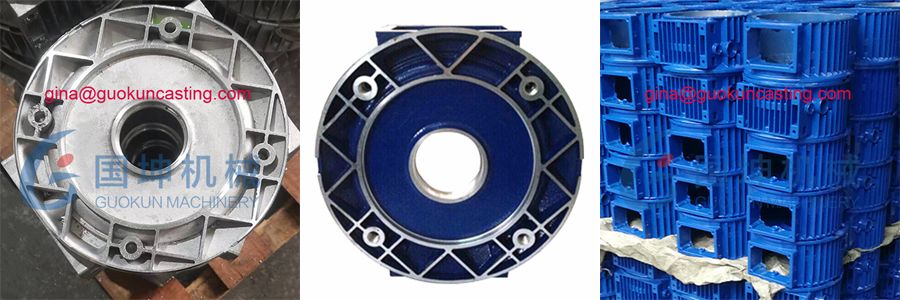

China aluminum die cast speed reducer housing

aluminum speed reducer housing

Aluminum alloy for die casting speed reducer casing:

Die casting material: ADC12, ADC10, A380, A383, AlSi11Cu3, AC-46100, AlSi10Mg and other aluminum alloys

Due to the high-speed operation when electrical motor working, the excessive temperature generated by motor itself needs to be released. The aluminum alloys will be chosen as the motor casing because that aluminum alloys have a strong heat dissipation capacity.

aluminum die casting alloy material

aluminum die casting alloy chemical composition

ADC12 (ADC means Aluminum-alloy Die Castings) is an alloy used in creating die casting components. Also known as A383, this aluminum material has low cost, outstanding machinability and excellent mechanical properties. ADC12 is the most widely used for furniture, electronics casing, motor shell, cylinder head cover, cylinder block, motor cover or motor housing, etc.

JIS ADC12 chemical composition

Cu% 1.5-3.5 Improves material strength and hardness
Si% 9.6-12.0 Improves flowability and castability
Mg% <0.3 Endows the material with better corrosion resistance
Zn% <1.0 Improve the thermal stability of aluminum alloys
Fe% <1.3 Helps to enhance the material’s mechanical strength
Mn% <0.5 Relatively low content
Ni% <0.5 Relatively low content
Sn% <0.2 Relatively low content
Al Remain The main component, with a content of no less than 85.0%

Die casting process for aluminum electric gearbox housing

Die casting is a metal casting technique used to produce metal components by injecting molten metal (Aluminum alloy, Zinc alloy or Magnesium alloy) into a mould cavity. Baoding Guokun can use this cost-effective metal casting process to manufacture high-quality and complex metal castings with tight tolerances and excellent surface finishes, such as gears, engine blocks, furniture handles and electrical components

The die casting process involves several steps, including mold design, metal preparation, injection, casting and finishing.

No. Steps Detail
1 Mold design and production The aluminum die casting mold is usually made from steel or aluminum, which is designed to withstand the high temperatures and pressures. Please mail the 3D drawing in .stp, .step or .X-T to Baoding Guokun. They will design the mold by CAD and produce it by CNC machine.
2 Metal preparation Prepare the required aluminum alloy, magnesium or zinc alloy for injection. The alloy will be melted in a furnace and then poured into a ladle.
3 Injection Inject the molten alloy into the mold under high pressure. The molten metal will fills the mould cavity and cools to create the desired shape.
4 Casting After the desired parts has cooled and hardened, open the mould to eject the parts. Please ensure that the part has cooled entirely before handling to avoid any potential injuries.
5 Surface treatment Surface finishing plays a vital role in die casting, as it can impact the durability and function of the part. Standard finishing processes include anodizing, powder coating.
Baoding Guokun Machining Equipment

Baoding Guokun Machining Equipment

Advantage and disadvantage of Die casting process

Die casting is characterized by high dimensional accuracy and allows for the mass production of thin-walled metal casting products with complex shapes. Die casting also has the advantaged of producing excellent casting surface and requiring less machining process. But die casting technique is limited to the use of aluminum alloys, zinc alloys and magnesium alloys. And the initial tooling cost is higher, compared with sand casting and investment casting process.

Baoding Guokun also can produce the cast iron speed reducer housing as per your drawings. If you like, please contact gina@guokuncasting.com to get the quotation. Baoding Guokun also can produce various motor housing in cast aluminunm and cast iron. If need more information, please click to https://www.metalcastingfactory.com/astm-a48-cast-iron-motor-housing/ check more details.
