Description

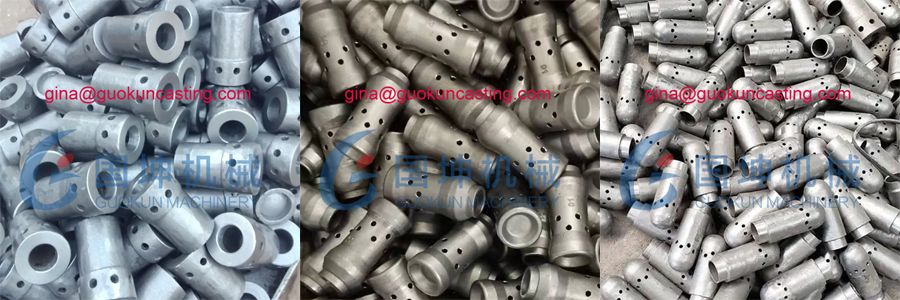

Air Nozzles, also called air cap, air button, bubbling cap, are used on air distribution plate of Circulating Fluidized Bed boiler or Bubbling Fluidized boiler. The boiler air nozzles are designed to direct airflow in the boiler to improve fluidization, eliminate dead zones and push debris away from the boiler. The boiler bed air nozzles produced by Baoding Guokun are very durable and are highly acknowledged among our customer due to their abrasion resistant nature. Based on 25 years casting experience, Baoding Guokun can use the suitable advanced metal casting techniques to produce the customized boiler nozzle. And we assure to deliver a defect free range of our metal casting products in a stipulated time frame.

The boiler bed air nozzles are made from many metals, including cast iron, cast steel, alloy steel, stainless steel and heat-resistant steel. They can be customized to suit the different fuels used in the boiler.

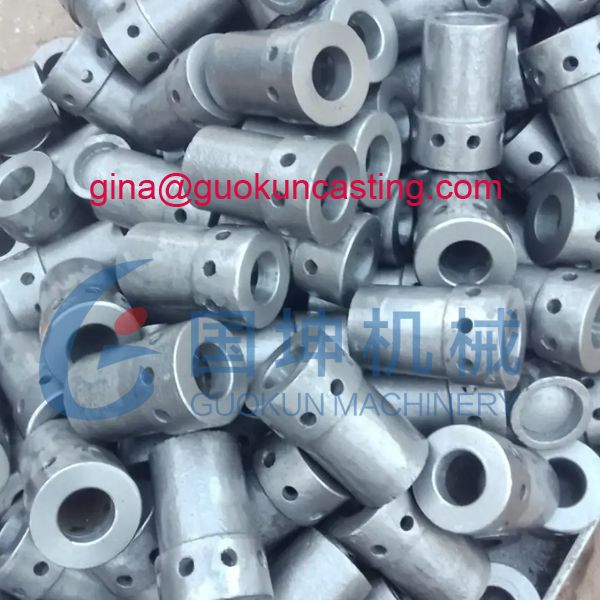

China heat resistant stainless steel boiler air bubble caps casting factory

Investment casting techniques for cast steel boiler air nozzle, stainless steel furnace air nozzle, cast steel boiler air cap.

Investment casting: Investment casting is an industrial metal casting process based on lost-wax precision casting, generally used for producing complex-shaped metal components that require tighter tolerances, thinner walls and better surface finish than other sand cast parts. Baoding Guokun can produce various investment casting parts in low-carbon steel, mild steel, alloy steel, stainless steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

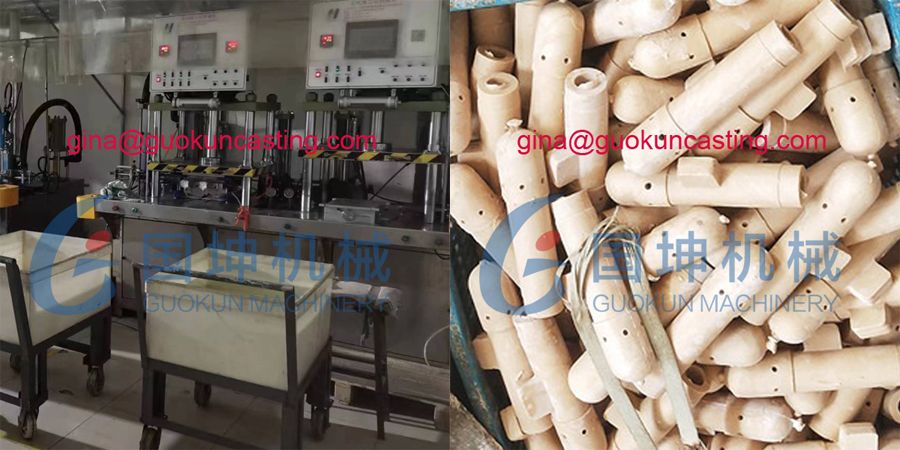

Investment casting process for boiler air nozzle, wax injection machinery and wax pattern

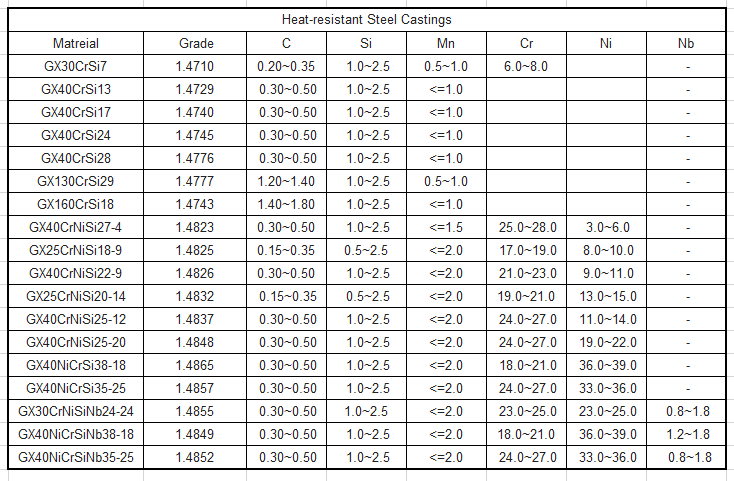

Heat resistant steel casting boiler end cap

Sand casting: Sand casting process is an industrial metal casting process that involves creating a mold from sand and pouring molten metal into it, generally used to cast the shaped parts of nearly any design, including large parts and those with internal passages. Baoding Guokun can produce various sand cast parts in cast iron, ductile iron, gray iron, low-carbon steel, mild steel, alloy steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high-quality carbon steel, cast iron and machined castings used in boiler, furnaces and incinerators. The boiler casting parts we produced are boiler air nozzle, wind cap, moving grate bars, travelling grate bars, fixed grate bars and all other boiler components and furnace castings.

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Pump casting, Valve casting, agricultural casting, aircraft casting, railway casting, road casting, motor casting, mining casting, boiler casting, power generation investment casting, Medical casting, marine industry casting
