Centrifugal pump housing

Home Pump Castings Centrifugal pump housing

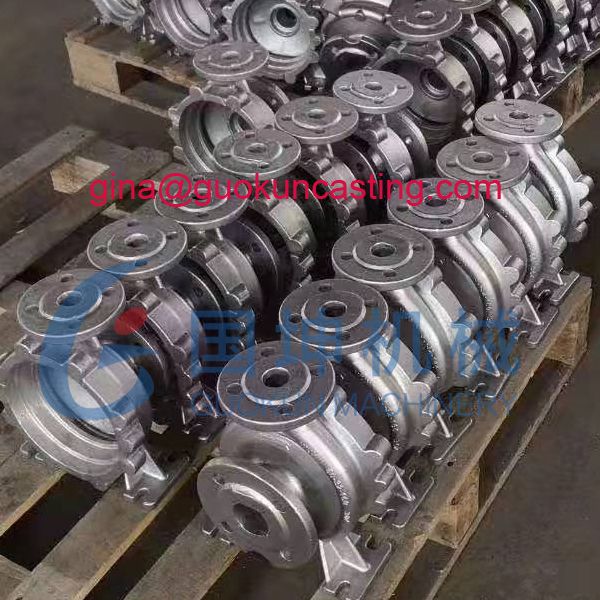

Centrifugal pump housing

Part name: Pump casing, pump housing, pump volute, pump shell

Metal: stainless steel, duplex stainless steel, super duplex stainless steel pump casing

Casting process: Lost-wax investment casting and precision machining

Baoding Guokun, a 25 years of casting experience, can produce various pump casings as per your drawings or design. Cast steel, low-carbon steel, mild steel, stainless steel, cast iron, cast bronze industrial pump housing could be casted by Baoding Guokun. If any similar need, please contact gina@guokuncasting.com

Pump Castings Tags: ,

Description

The pump casing is a metal casting outer housing, pump volute or pump shell that holds a pump and protects the internal pump parts, allowing fluid to flow through while maintaining pressure and preventing leaks by sealing off the inside of the pump from the atmosphere.

pump casings

The two main types of casings in centrifugal pumps are volute casings and diffuser casings. A very common classification of pump casings is the diffuser construction. A diffuser is actually a series of vanes surrounding the impeller which accepts the discharge of liquid from the impeller.

Material of pump casings

Product Name

 Material Casting process

Carbon steel cast pump casing

 ASTM A216-Gr. WCB, Gr. WCA, Gr. WCC;
ASTM-415-205,450-240,485-275, 80-40;
DIN- GS-C25(1.0619), GS-38(1.0416),
GS-45(1.0446),GS-52(1.0552),GS-60(1.0558);
JIS-SC410, SC450, SC480, SCC5;
BS-A1, A2, A5;
NF-GE230, GE280, GE320, GE370		 Lost wax investment casting

Sand casting

Alloy steel casting pump casing

 DIN-GS-40Mn5(1.1168), GS-20Mn5(1.1120);
GS-37MnSi5(1.5122), GS-34CrMo4(1.7220);
JIS-SCMn3, SCW480, SCSiMn2, SCCrM3, SCMnCR3;
ASTM-LCC
UNS-J02505, J13048
NF-G20M6, G35CrMo4

Lost wax investment casting

Sand casting

Stainless steel cast pump casing

 ASTM-CF8M, CF8, CA-15, CA-40, 316, 304;
DIN-G-X6CrNi189(1.4308), G-X7Cr13(1.4001),G-X20Cr14(1.4027),1.4408;
JIS-SCS13, SCS 1, SCS 2, SCS 14A;
BS-304C15, 410C21, 420C29, 316, 304;
NF-Z6CND18.12M, Z6CN18.10M, Z12C13M, Z20C13M

Silica sol investment casting

Ductile iron pump casing

 ASTM A 536-Gr.60-40-18,65-45-12,80-55-06,80-60-03;
DIN-GGG40,GGG50,GGG60,GGG70;
JIS-FCD40,FCD50,FCD60,FCD70;
BS-Gr370-17,Gr420-12,Gr500-7,Gr600-3,Gr700-2;
NF-FGS370-12,FGS400-12,FGS500-7,FGS600-3,FGS700-2

Green-sand casting
Resin-sand casting

Shell mold casting
Lost foam casting
Gray iron pump casing ASTM A48-No.20,25,30,35,40,45,50;
ASTM A126-Class A, Class B, Class C;
DIN-GG10,GG15,GG20,GG25,GG30,GG35;
JIS-FC10,FC15,FC20,FC25,FC30,FC35;
BS-Grade 150,180,220,260,300,350;
NF-FGL150,FGL200,FGL250,FGL300,FGL350;

Green-sand casting
Resin-sand casting

Shell mold casting
Lost foam casting

Pump casing metal casting process

No.

 Investment Casting Sand Casting Centrifugal Casting Precision Machining

Process

 Investment casting, also named lost-wax casting, making parts from molten metal. Sand casting, the most widely used casting process, utilizes expendable sand molds to form complex, metal parts that can be made of nearly any alloy Centrifugal casting, sometimes called rotocasting, is a metal casting process that uses centrifugal force to form cylindrical parts

Precision machining from the tubes, bars, blocks to get the required shapes.

Metal

 steel, brass, copper and bronze steel, brass, copper and copper, cast iron Brass, bronze and copper alloy steel, brass, copper and bronze, aluminum, etc

Weight

 Max. 500kgs Max. 20,000kgs Max. 10,000 kgs

Max. 10,000 kgs
Tolerance CT4-7 CT9-CT12 as per drawings

as per drawings

Advantage

 Complex structure and high production rate Can produce complex structure Fine inner structure No defects like sand casting

high precision

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun can produce various pump casing, centrifugal pump casing, water pump casing, diffuser pump casing, pump casing and impeller, pump casing casting, cast iron pump casing, ductile iron pump casing, stainless steel pump casing, pump housing, water pump housing, pool pump housing, fuel pump housing, oil pump housing, pump impeller and other pump parts.

Baoding Guokun Machinery Co., Ltd.

Office Add: 777# Chaoyang South Street, Baoding City, Hebei, 071000, China

Factory Address: Wangdu County, Baoding City, Hebei, 071000, China

Website: www.metalcastingfactory.com

Tel: 86-312-5951319 Fax: 86-312-5951296

Phone: 86-181 3278 9710 (WhatsApp & WeChat)

Email: gina@guokuncasting.com or gina.guokun@gmail.com
