Electric motor end cover

Home Iron Casting Electric motor end cover

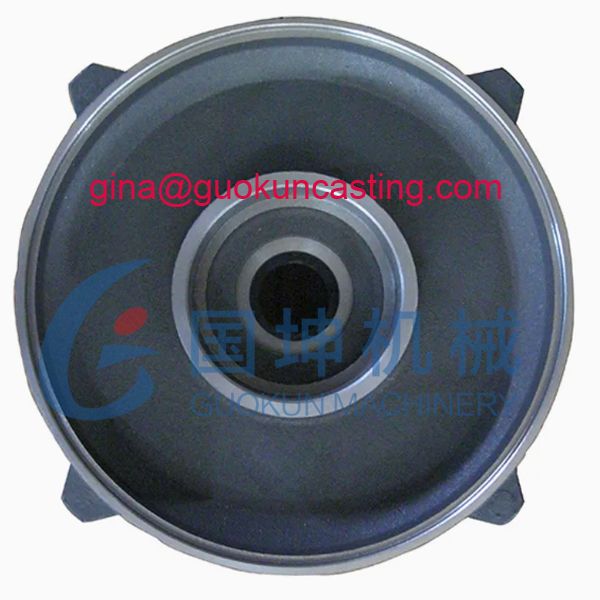

Electric motor end cover

Part name: Electric motor bearing end cover

Metal: Cast iron, ductile iron or gray iron motor bearing covers

Process: Sand molding casting process

Weight controlled: 1-500 kgs

Surface treatment: Anti-rust oil or painting

Baoding Guokun can produce various electrical motor bearing covers in grey iron, ductile iron, cast iron as per your drawings. ASTM A48, ASTM A536 is normal cast iron used for motor castings. If similar need, please contact gina@guokuncasting.com to get a quotation.

Iron Casting Tags: ,

Description

Engine and motor castings manufacturer!

Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing and other custom motor casting in cast iron, cast steel and aluminum alloys.

electric motor castings

What is motor bearing cover or motor end cover?

The casting motor bearing end cover is an important and protective motor casting parts that seals and shields the bearings within an electric motor, preventing contaminants like dust and moisture from entering while helping to retain lubrication, thus extending the bearing’s working life and improve the motor performance.

The metal casting process for motor bearing end covers we can offered is as follows:

No. Investment Casting Sand Casting Lost Foam Casting Precision Machining
Process Investment casting, also named lost-wax casting, making parts from molten metal. Sand casting, the most widely used casting process, utilizes expendable sand molds to form complex, metal parts that can be made of nearly any alloy Lost foam casting is a metal casting process for creating complex metal parts that uses a foam pattern instead of wax. Precision machining from the tubes, bars, blocks to get the required shapes.
Metal steel, brass, copper and bronze steel, brass, copper and copper, cast iron Steel, iron and Aluminum alloy steel, brass, copper and bronze, aluminum, etc
Weight Max. 500kgs Max. 20,000kgs Max. 100 kgs Max. 10,000 kgs
Tolerance CT4-7 CT9-CT12 as per drawings as per drawings
Advantage Complex structure and high production rate Can produce complex structure Dimensional accuracy, reduced machining, cost-effective, no parting line. high precision

Metal for motor bearing cover:

Ductile iron motor bearing cover: ASTM A536 Gr.65-45-12, Gr.60-40-18, Gr.80-55-06; GGG40, GGG50, GGG60. JIS-FCD40, FCD50, FCD60, QT450-12, etc

Gray Iron motor bearing cover: ASTM A48 class20, calss30, class 35, class 40, DIN 1691 GG20, GG25, GG30, JIS-FC10, FC15, FC25, HT200, HT250, HT300, etc.

Stainless steel motor end cover: 316, 304, CF8, CF8M, 1.4308, 1.4408, etc.

Alloy steel motor bearing covers: DIN-GS-40Mn5, GS-20Mn5, 35CrMo4, ASTM A487, Grade 4 castings, etc.

Carbon steel motor bearing covers: ASTM A216 Gr. WCB, WCC, WCA, 1.0446, 1.0416, etc.

Aluminum alloy motor bearing covers: ASTM A356, A380, ADC10, ADC12, etc.

clay sand casting

shell mold casting

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun can produce various pump end cover, motor end cover, bearing cover, electric motor end cover, Manufacturer OEM Cast Iron Vertical Motor Housing Parts End Cover, Flange End Cover, Sand Casting Motor Cover, motor body end cover, bearing cap, heater motor end cover, aluminum motor end cover, cast iron motor end cover, stainless steel end cover, end seal cover, motor castings, motor end cover, motor bearing cover.

Baoding Guokun Machinery Co., Ltd.

Office Add: 777# Chaoyang South Street, Baoding City, Hebei, 071000, China

Factory Address: Wangdu County, Baoding City, Hebei, 071000, China

Website: www.metalcastingfactory.com

Tel: 86-312-5951319 Fax: 86-312-5951296

Phone: 86-181 3278 9710 (WhatsApp & WeChat)

Email: gina@guokuncasting.com or gina.guokun@gmail.com
