Engine castings

Home Iron Casting Engine castings

Engine castings

Part name: Engine casting parts

Metal: Cast iron, ductile iron, but Guokun also can offer you the customized engine casting parts in cast steel and cast aluminum.

Weight controlled: 0.5-500 kgs for engine castings

Process: sand casting process

Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts in cast iron, cast steel and aluminum alloys. Please mail your engine casting parts to gina@guokuncasting.com to get a quote.



Iron Casting Tags: ,

Description

Engine and Motor castings manufacturer!

Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing and other custom engine casting in cast iron, cast steel and aluminum alloys.

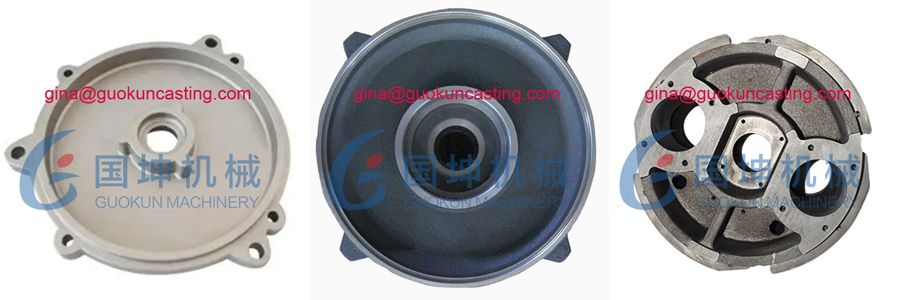

electric motor castings

What is engine bearing cover or engine end cover?

The casting engine motor bearing end cover is an important and protective motor casting parts that seals and shields the bearings within an electric motor, preventing contaminants like dust and moisture from entering while helping to retain lubrication, thus extending the bearing’s working life and improve the motor performance.

The metal casting process for engine bearing end covers we can offered is as follows:

No. Investment Casting Sand Casting Lost Foam Casting Precision Machining
Process Investment casting, also named lost-wax casting, making parts from molten metal. Sand casting, the most widely used casting process, utilizes expendable sand molds to form complex, metal parts that can be made of nearly any alloy Lost foam casting is a metal casting process for creating complex metal parts that uses a foam pattern instead of wax. Precision machining from the tubes, bars, blocks to get the required shapes.
Metal steel, brass, copper and bronze steel, brass, copper and copper, cast iron Steel, iron and Aluminum alloy steel, brass, copper and bronze, aluminum, etc
Weight Max. 500kgs Max. 20,000kgs Max. 100 kgs Max. 10,000 kgs
Tolerance CT4-7 CT9-CT12 as per drawings as per drawings
Advantage Complex structure and high production rate Can produce complex structure Dimensional accuracy, reduced machining, cost-effective, no parting line. high precision

Metal for engine castings:

Ductile iron engine castings: ASTM A536 Gr.65-45-12, Gr.60-40-18, Gr.80-55-06; GGG40, GGG50, GGG60. JIS-FCD40, FCD50, FCD60, QT450-12, etc

Gray Iron engine castings: ASTM A48 class20, calss30, class 35, class 40, DIN 1691 GG20, GG25, GG30, JIS-FC10, FC15, FC25, HT200, HT250, HT300, etc.

Stainless engine castings: 316, 304, CF8, CF8M, 1.4308, 1.4408, etc.

Alloy steel engine castings: DIN-GS-40Mn5, GS-20Mn5, 35CrMo4, ASTM A487, Grade 4 castings, etc.

Carbon steel engine castings: ASTM A216 Gr. WCB, WCC, WCA, 1.0446, 1.0416, etc.

Aluminum alloy engine castings: ASTM A356, A380, ADC10, ADC12, etc.

clay sand casting

shell mold casting

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a monthly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

Baoding Guokun can produce various pump end cover, motor end cover, engine castings, Engine castings, engine casting China, casting engine parts, engine casting process, engine casting company, engine die casting, die casting engine parts, engine head casting, cast iron engine castings, cast steel engine casting, cast aluminum engine casting, engine castings factory, engine castings stainless steel parts as per your drawings.

Baoding Guokun Machinery Co., Ltd.

Office Add: 777# Chaoyang South Street, Baoding City, Hebei, 071000, China

Factory Address: Wangdu County, Baoding City, Hebei, 071000, China

Website: www.metalcastingfactory.com

Tel: 86-312-5951319 Fax: 86-312-5951296

Phone: 86-181 3278 9710 (WhatsApp & WeChat)

Email: gina@guokuncasting.com or gina.guokun@gmail.com
