Description

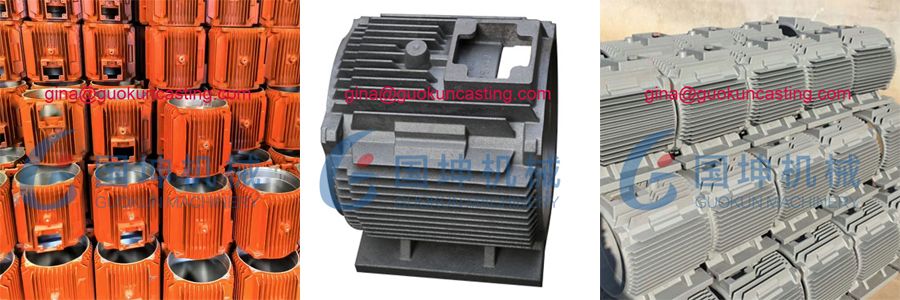

Baoding Guokun is a professional motor castings factory of motor shell, motor housing, and motor casing with tight tolerance, no leakage and wear-resistance in grey cast iron and aluminum alloys ASTM A356.

The motor shell is the outer motor housing to protect the internal motor components from dust, moisture, and other environmental factors while also helping to dissipate heat generated during operation. Essentially, the motor casing is the motor outer shell that holds everything together and safeguards the inner workings.

Usually, the material of motor housing is cast iron ASTM A48 for the larger motor casing. But the material is no longer limited to steel and pig iron as in the past, the thin and lightweight stainless steel and aluminum alloy are also more popular. Baoding Guokun can choose the suitable metal for your electric motor housings depending on your motor’s application and required strength. We have been in casting industry for more than 25 years, majoring in investment casting, sand casting, lost foam casting and precision machining for pump, valve, marine, medical, food industry, agriculture, tillage, motor, power, etc.

Gray cast iron motor shell

Gray iron is a cast iron with a graphitic microstructure that’s commonly used for its low cost and attractive properties. It is often used in applications where stiffness is more important than tensile strength, such as: Pump castings, motor castings, marine castings, valve castings, counterweight, agricultural castings and gearboxes castings.

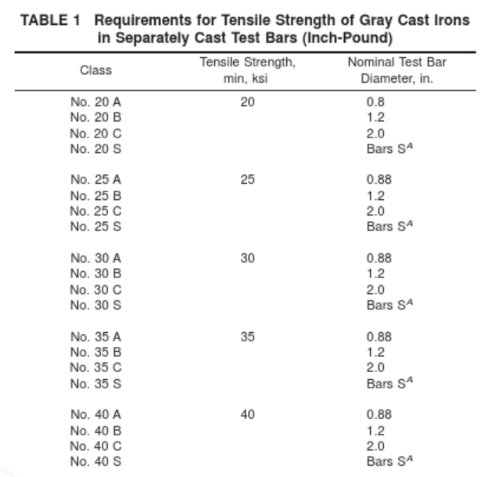

ASTM A48 Class 35 gray cast iron, HT250, EN-GJL-250, GG25, FC250, FGL250, G25, T250, O125 or ISO Grade 250

The composition of gray cast iron is 2.5%-4% carbon, 1%-3% silicon, and some additions of manganese ranging from 0.1% to 1.2%.

Process of electric motor shell is lost foam casting process.

Lost foam casting is a metal casting process for creating metal parts by using a foam pattern that evaporates when molten metal is poured into it:

1. Create the foam pattern: The pattern is made from pre-expanded polystyrene (EPS) that is heated in an aluminum die to expand and fuse the beads. The pattern can be carved, machined, or created using injection molding.
2. Coat the foam: A ceramic refractory coating is applied to the foam to protect it from the sand and create a barrier.
3. Compact the sand: The foam pattern is placed in a flask and surrounded by unbonded sand, which is compacted using a vibration table.
4. Pour the metal: Molten metal is poured into the flask, causing the foam to evaporate and leaving behind the metal.
5. Remove the coating: The refractory coating is removed to expose the metal part.
6. Sandblasting and machine process.

A High Quality China Foundry！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a montly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.

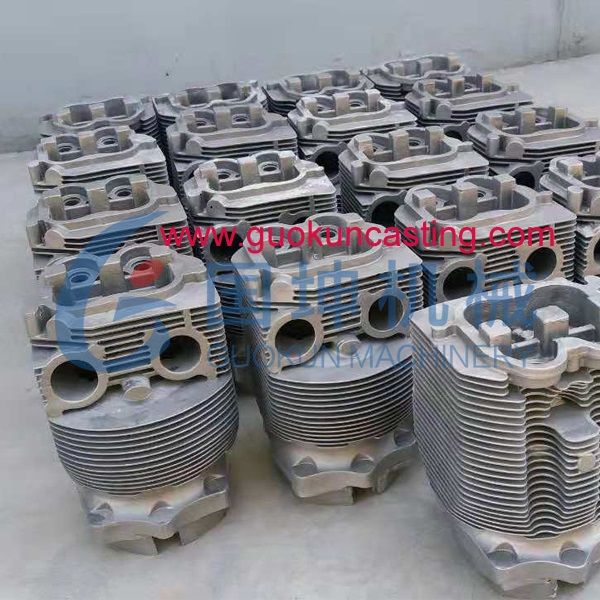

Baoding Guokun is a professional motor castings factory of motor shell, motor housing, and motor casing with tight tolerance, no leakage and wear-resistance in grey cast iron and aluminum alloys ASTM A356. Engine and motor castings manufacturer. Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for motor casting and engine casting parts, motor shell, end bracket, frame, cooling fan, end bracket, bearing housing and other custom motor casting in cast iron, cast steel and aluminum alloys.
