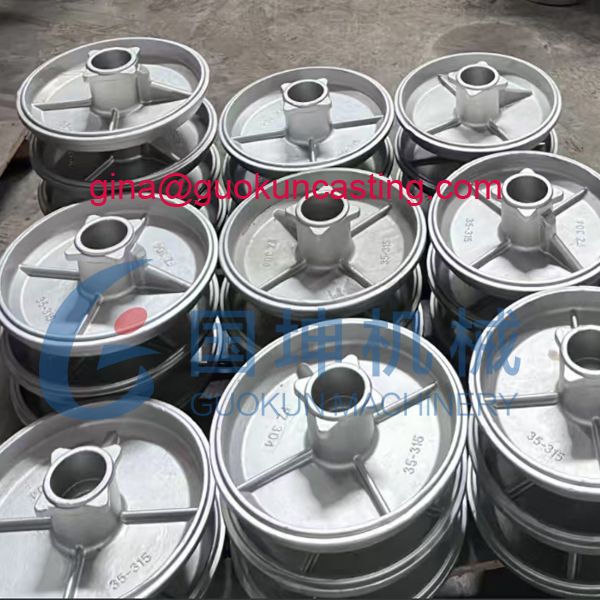

Stainless steel casting pump cover plate

Part Name: Pump casing cover

Material: Stainless steel 304

Metal Process: Silica sol lost-wax investment casting and precision machining

Application: Slurry pump, water pump, oil pump, centrifugal pump, pool pump, fuel pump, etc

Baoding Guokun can produce various pump back liner, pump back cover, pump back plate in high Chromium steel, stainless steel, carbon steel and aluminum alloys. Please mail your inquiry to gina@guokuncasting.com.

Description

Baoding Guokun is a 25 years’ experience casting factory in sand molding process and investment casting process for pump parts, pump housing, pump casing, pump back liner, pump volute, pump diffuser impeller, pump impeller, pump expeller, pump lower stainer, pump rear cover, pump volute casing and other custom pump casting in cast iron, cast steel and aluminum alloys.

China pump back liner factory

What’s pump back liner?

The slurry pump back liner is the inner lining of the slurry pump back casing, which a crucial pump wet components where the shaft passes through. The pump back liner is typically made of high chromium cast irons, carbon steel and stainless steel with rubber, polyurethane or special wear-resistant coatings.

Application of Baoding Guokun’s pump back liner.

Centrifugal slurry pumps for Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Wastewater, Transport and Flood Control, Minerals Flotation, Coal Preparation, Chemical Effluent Handling.

Material for frame plate liner inserts:

High Chromium steel is a special steel with more than 11% chromium, making it resistant to rust and increase the steel’s corrosion resistance.

High chromium alloy A05, also know as high Chrome 27% or KmTBCr27, is a white iron alloy that’s commonly used in slurry pump castings.

High chromium steel A07 is more wear-resistant than A05, and its chromium content is a little higher than A05.

Some customer will choose the pump back covers that used carbon steel coated with polymer, such as natural rubber R55, or polyurethane.

And Baoding Guokun also can manufacture some simple casting pump covers in aluminum alloy in A356 and common stainless steel 314 or 316. Please mail your inquiry to gina@guokuncasting.com to get a quotation.

Stainless steel is a type of low-carbon steel that is resistant to corrosion and rusting. It is made from iron, chromium, and other elements, such as nickel, carbon, molybdenum, and nitrogen. The chromium content in stainless steel is at least 10.5%, which creates a chromium oxide layer on the surface that protects the material from further oxidation.

Stainless steel has many properties, including corrosion resistance, durability, temperature resistance, recyclability, maintenance, modern appearance, high tensile strength, good ductility and high hardness. The stainless steel can be used in many different industries, such as automotive, aircraft, construction, marine, medical, food, etc.

The common stainless steel grades

stainless steel alloys
Gr.	Chemical Composition				Mechanical Properties
Gr.	C	Cr	Ni	Mo	Tensile Strength MPa	Yield strength Mpa	Elongation %
304	≤0.08	18 ~ 20	8 ~ 11	–	≥520	≥205	≥45
304L	≤0.03	18 ~ 20	8 ~ 12	–	≥480	≥175	≥45
316	≤0.08	16 ~ 18	10 ~ 14	2 ~ 3	≥520	≥205	≥45
316L	≤0.03	16 ~ 18	10 ~ 14	2 ~ 3	≥480	≥175	≥45
410	≤0.12	11.5 ~ 13.5	≤0.75	–	≥440	≥205	≥20
430	≤0.12	16 ~ 18	≤0.75	–	≥450	≥205	≥22

The most common stainless steel alloy is austenitic stainless steel, particularly Grade 304 and Grade 316, which is a mixture primarily composed of Cr and Ni, offering good corrosion resistance and excellent formability, making them widely used in various applications.

Wax injection machinery of Baoding Guokun

Investment casting cast steel pump parts: Silica sol investment casting process is a very efficient and accurate casting technique that offers high precision, net-shape pump castings, smooth casting surface, reduced machining process for your stainless steel pump casting parts in UNS S31600, 316, 304, 316L, CF8, CF8M and other stainless steels.

Baoding Guokun Investment casting process steps for 304 OEM casting parts:

No.	Steps	Details
1	Patterns Makings	Creating a wax mold of the desired stainless steel pump impellers, and then adding sprues to the wax model to create a tree-like structure.
2	Shell Building	Coating the wax pattern with a layer of fire-resistant paint, and then to be sprinkled with sand, so after a period of hardening, the surface will form a layer of fire-resistant thin shell.
3	Dewaxing	Removing the wax, the shell is placed into an oven, melting the wax so that it can run out of the shell.
4	Pouring	Pouring the molten stainless steel into the shell, and waiting for solidification under room temperature.
5	Post treatment	After cooling, knock the shell and cut the sprue gate by grinding machinery to achieve net shape impeller castings. Then shot blasting to move mill scales to assure the smooth casting surface.
6	Machining	CNC Machining
