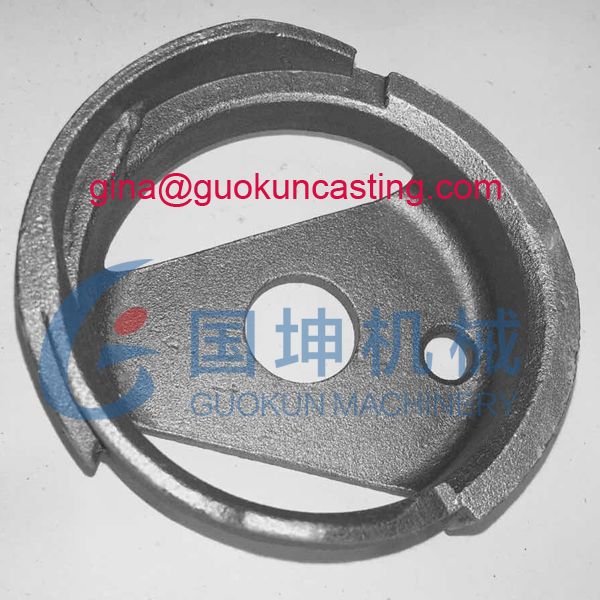

Water glass casting process

The water glass casting process is typical of the process in the early stages of investment castings. It generally is capable of much larger castings than the Silica Sol process, but does not have as good of surface finish or tolerances. The water glass process provides parts that have better surface finish and dimensional tolerances than sand castings. This process may range in weight from several ounces to approximately 200 pounds. If you need water glass casting services from China investment casting factory, please contact gina@guokuncasting.com to get more details.

Investment Casting

Description

Baoding Guokun, with 25 years casting experience, can produce various mild steel investment casting for various industries. Lost wax investment casting process can produce complex parts that are near-net shape. The mild steel lost-wax casting parts manufactured by Baoding Guokun is with complex shapes, tight and accurate tolerances that have a standard of ISO 8062 CT9-10, fine surface finish 6.3-12.5 μm Ra, minimal machining to reduce time and cost and cost-effective. The low carbon steel lost wax investment casting parts produced by Guokun, usually service different industries, such as railroad casting, pump casting, valve casting, heavy truck casting parts, mining casting, power generation equipment parts, etc.

Investment casting process for cast steel pipe fittings:

Investment casting is an industrial metal casting process based on lost-wax precision casting, generally used for producing complex-shaped metal components that require tighter tolerances, thinner walls and better surface finish than other sand cast parts. Baoding Guokun can produce various investment casting parts in low-carbon steel, mild steel, alloy steel, stainless steel for pump, valve, agriculture, railway, road, forklift, tillage, mining, automotive, medical, food, and aircraft, etc.

China water glass investment casting process

Two types of investment cast processes: Silica Sol process and the water glass process.

The Silica Sol investment casting process is used to cast complex high-quality parts with requirements of a very good surface finish and close dimensional tolerances. This process can range from a weight of just a few ounces to approximately 80 pounds. If you are concerned with precision in very small parts, we are especially proficient at very fine detail work including teeth and serrations.

First article layouts and spectrometer material certifications are provided with all first article samples.

Custom service: A variety of secondary operations can be performed on both types of investment castings. They include heat treatment, machining, plating, painting, polishing and buffing, assembly services and even custom packaging.

Wax injection machinery of Baoding Guokun

Metal used for water glass investment casting process:

Metal for investment casting
Stainless steel	Stainless steel is a popular choice for investment casting because it’s durable and resistant to corrosion.
Carbon steel	Carbon steel is a low-cost material that comes in many grades. Heat treatment can improve the strength, ductility, and performance of carbon steel.
Alloy steel	Alloy steel is steel that is alloyed with a variety of elements in amounts between 1.0% and 50% by weight, typically to improve its mechanical properties.
Copper alloys	Many types of parts can be cast from copper-based alloys, such as brass and bronze. Beryllium copper is the strongest copper alloy and is resistant to corrosion.
Aluminum	Alloys like A-356, A-357, C-355, and F-357 are commonly used in investment casting. These alloys are resistant to corrosion and can be welded.

A High Quality China Metal Casting Factory！

Guokun Casting, of Baoding Hebei is an ISO 9001-2008 registered iron and steel foundry & supplier of high quality carbon steel, cast iron and machined castings used in power, mining, railway, agricultural, tillage, truck, automobile, pump, valve, motor, pipe fittings and gear industry.

With a monthly capacity of 10,000kgs and with more than 15 years of experience ensure the short delivery and the highest valued iron & steel casting parts.
